Project: ROB-5 Retaining Wall Repair
Client: West Central Railway
Location: Itarsi, Madhya Pradesh
Contractor: Savinaya Infratech Pvt. Ltd.
Design Vetting Authority: IIT Bombay

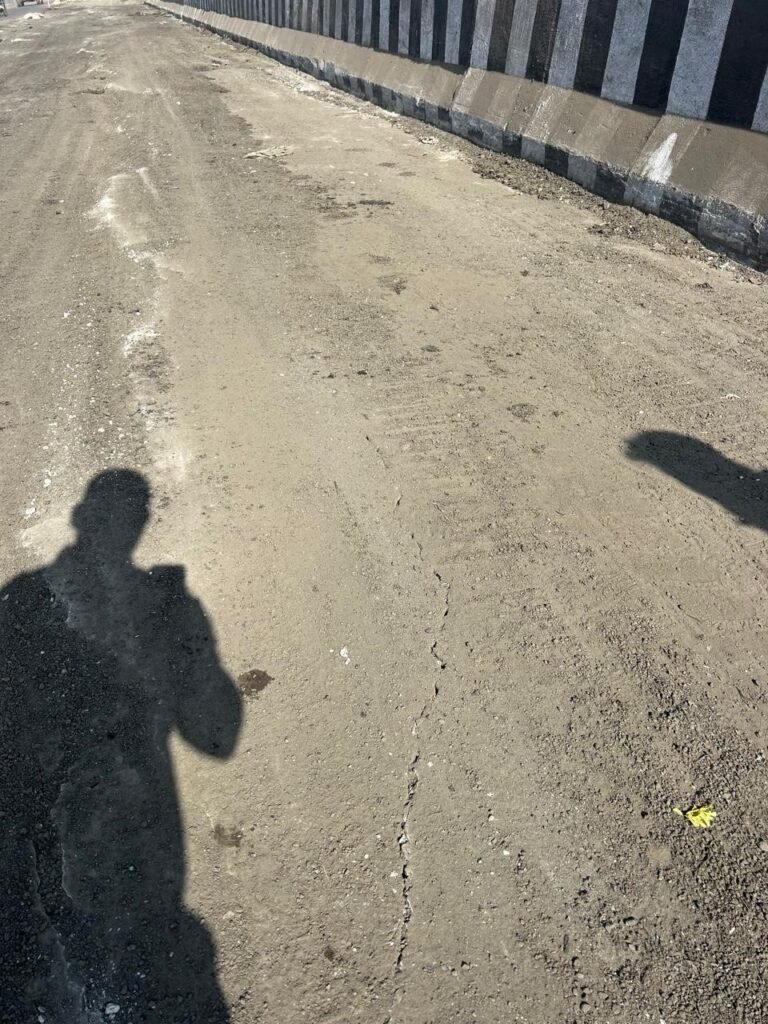

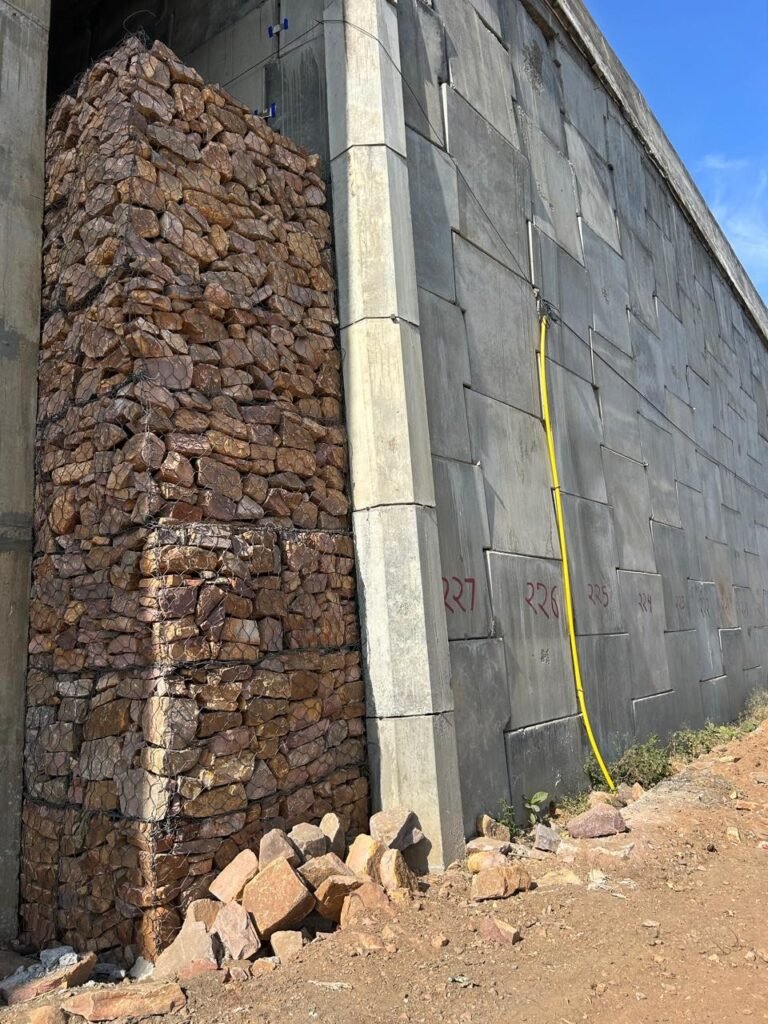

1. Project Background The Reinforced Earth (RE) wall at ROB-5, Itarsi, constructed in 2022, exhibited significant distress within three years. Issues included panel bulging near the abutment, road cracks, and soil leakage through panel joints. A gabion wall was installed as a temporary protective measure.
2. Problem Assessment
– Inadequate drainage system

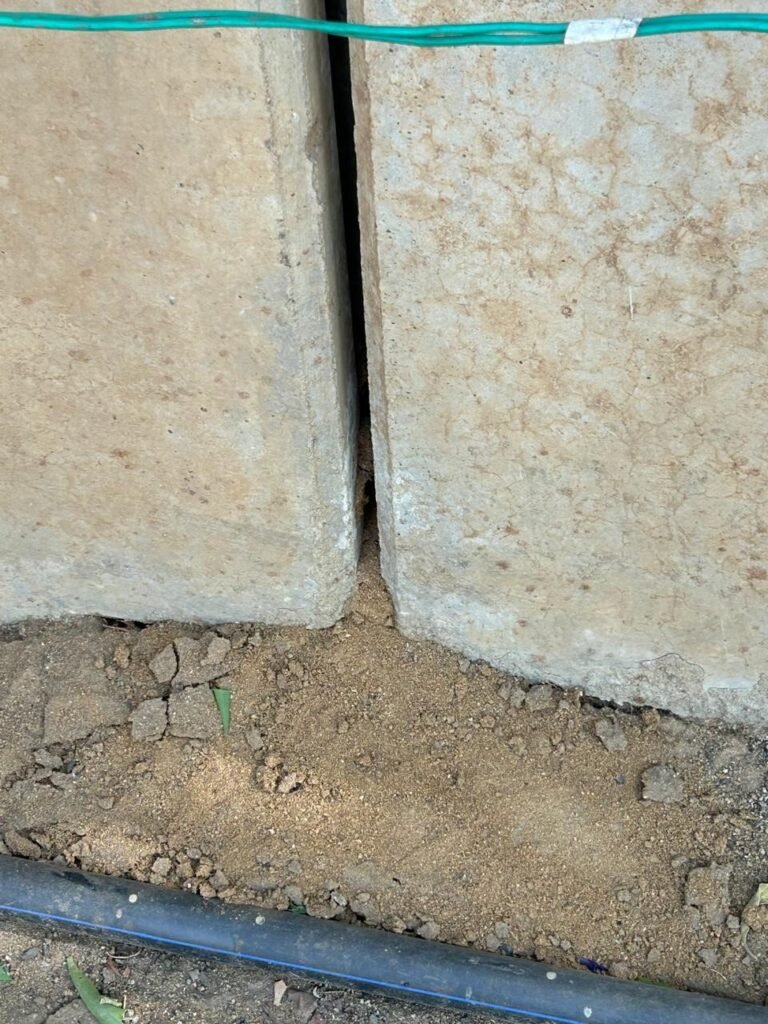

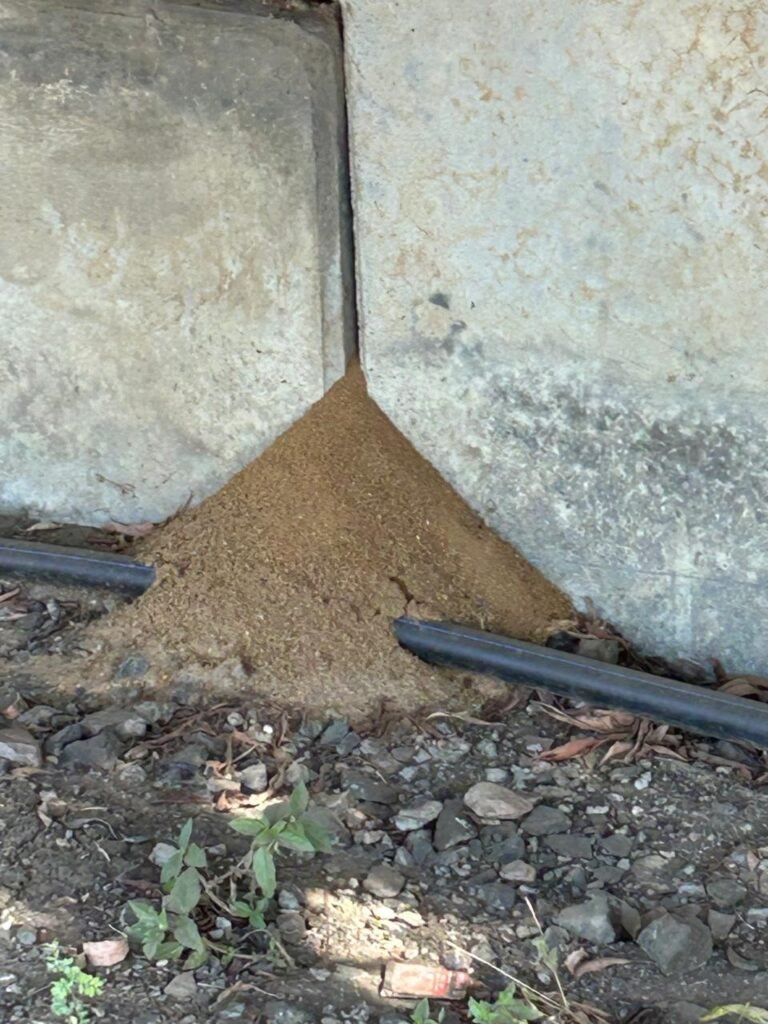

– Soil loss through joints
– Localized instability near abutment
– Restricted working space (~1.7 m)
3. Adopted Solution

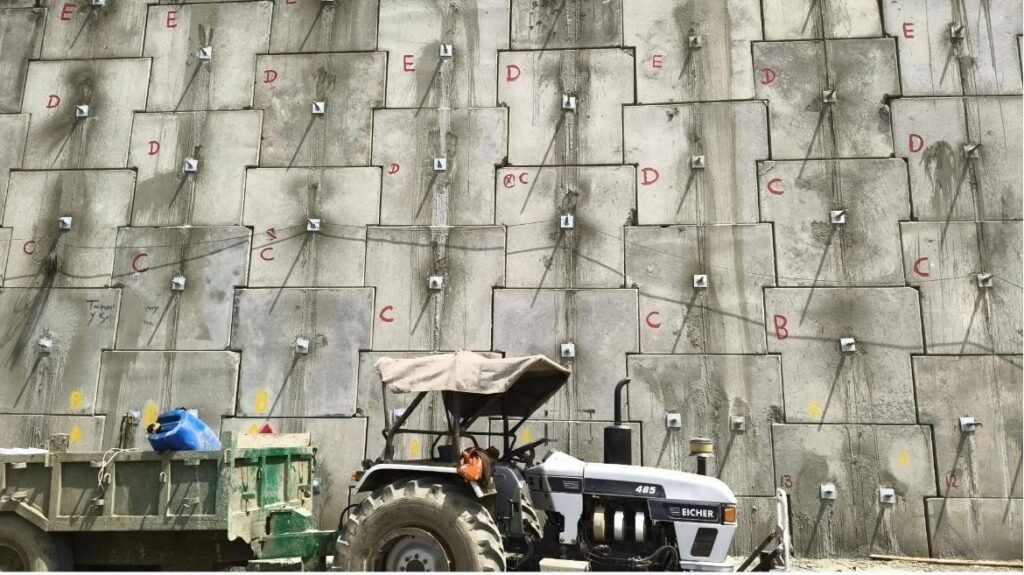

A Soil Nailing rehabilitation system was designed by Savinaya Infratech Pvt. Ltd. and vetted by IIT Bombay.
4. Methodology

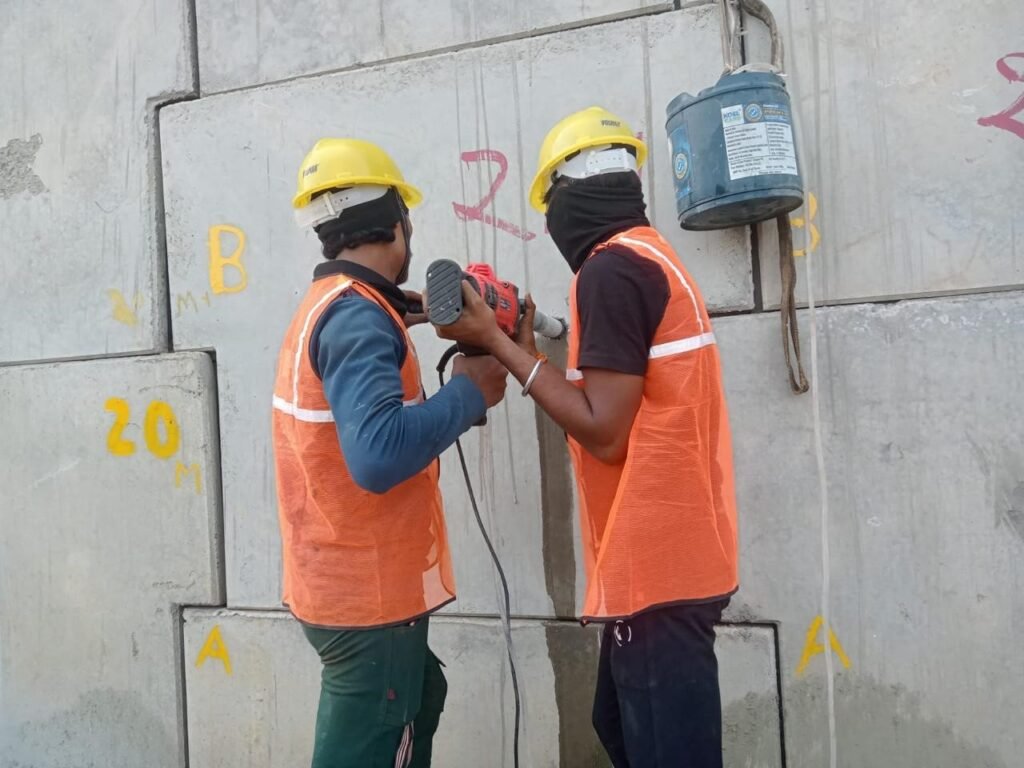

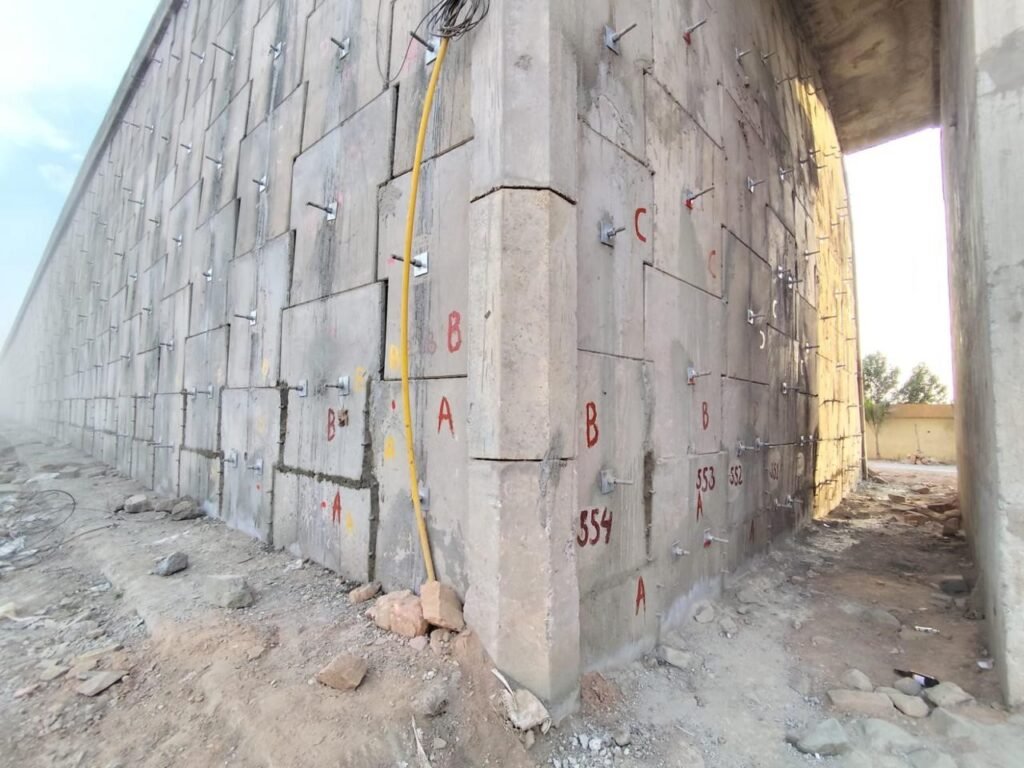

– Panel marking and core cutting

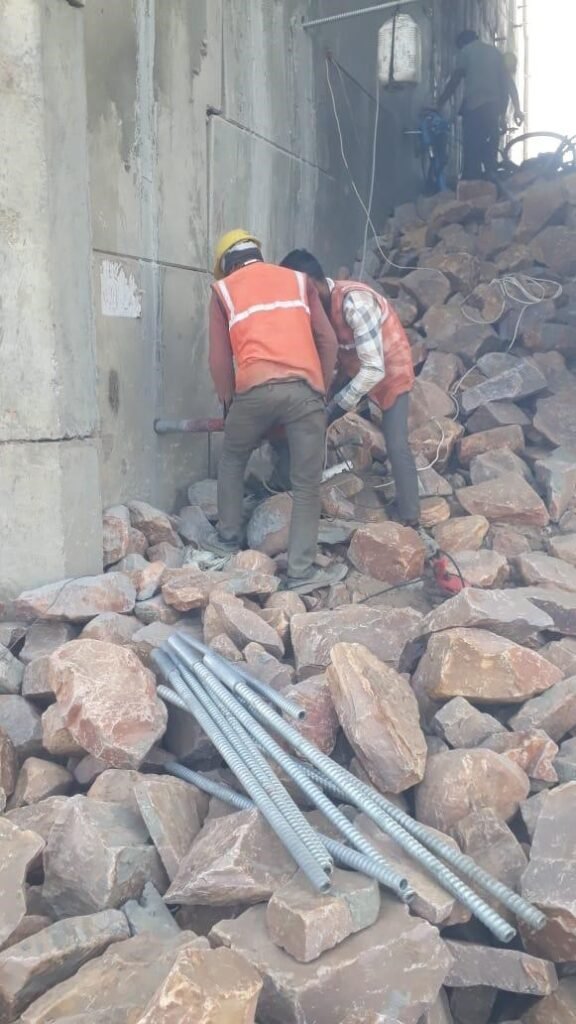

– SDA nail drilling and installation

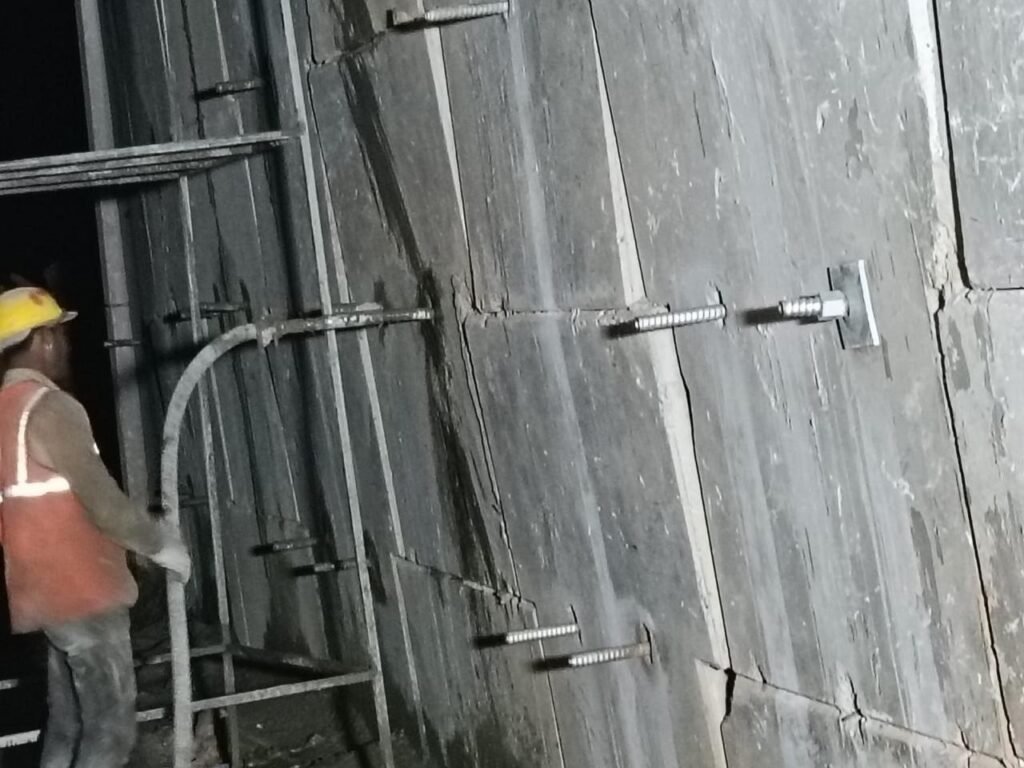

– Grouting for bonding
– Bearing plate and nut fixing
5. Drainage Improvements
– Installation of weep holes

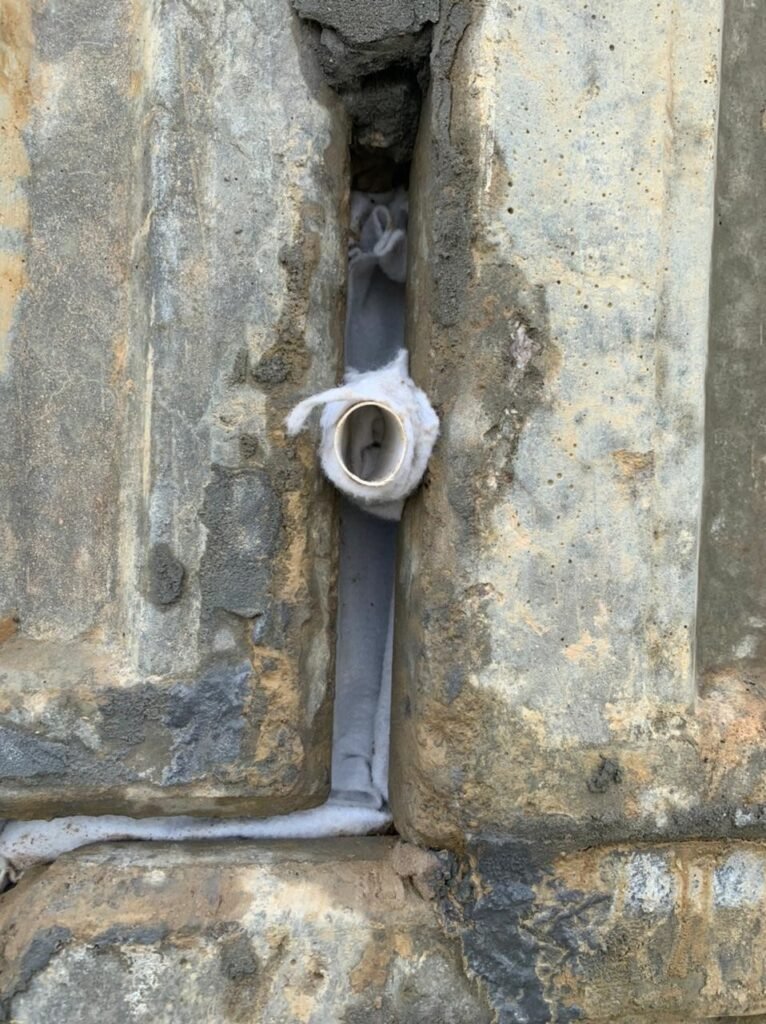

– Geotextile wrapping

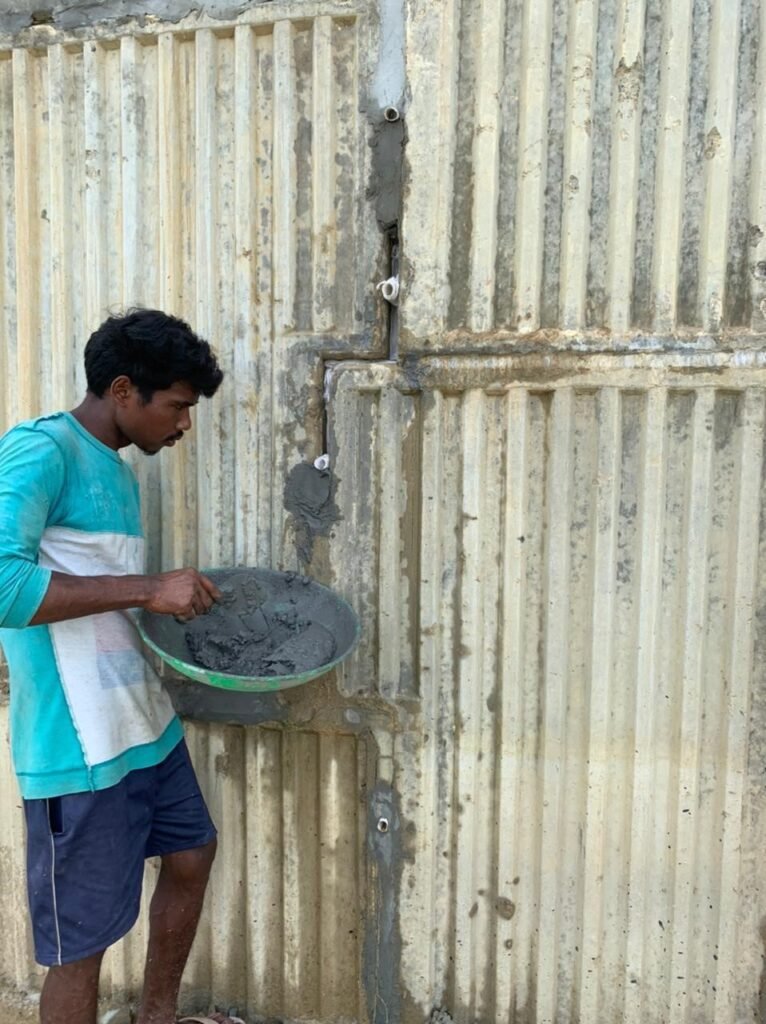

– Joint sealing
6. Challenges & Solutions
Limited space: staged drilling with couplers
Panel safety: controlled core cutting
Soil leakage: geotextile filtration

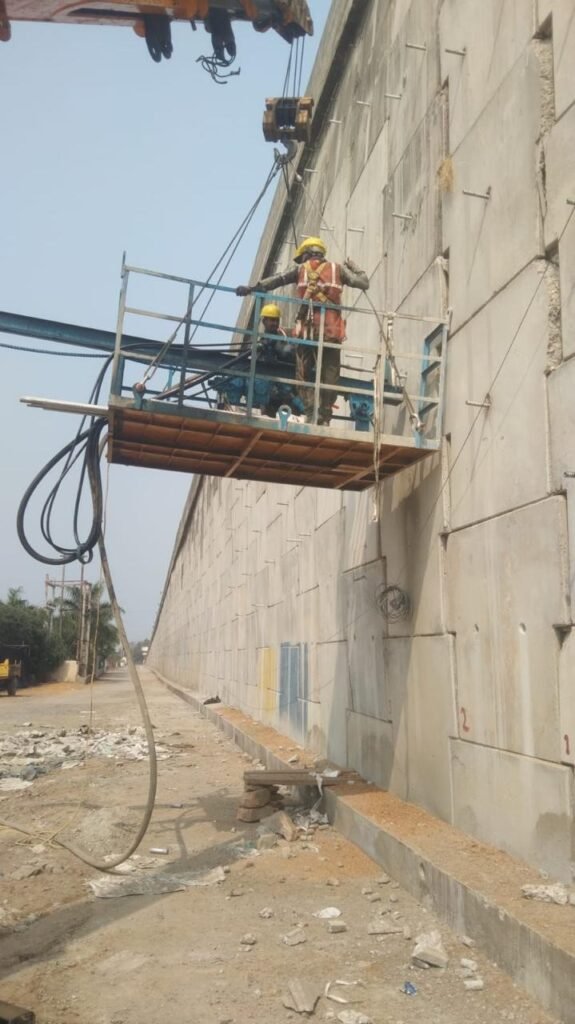

Height issues: suspended platform
7. Execution of Side Walls
Soil nailing was executed as per approved design across side walls.
8. Outcome
– Stabilized RE wall
– Prevented further deformation
– Improved drainage
– Increased structural life
9. Conclusion
Soil nailing proved to be an effective rehabilitation solution ensuring long-term performance.
